Conotech NIGHT ARROW 350LIIR

Product detailed description

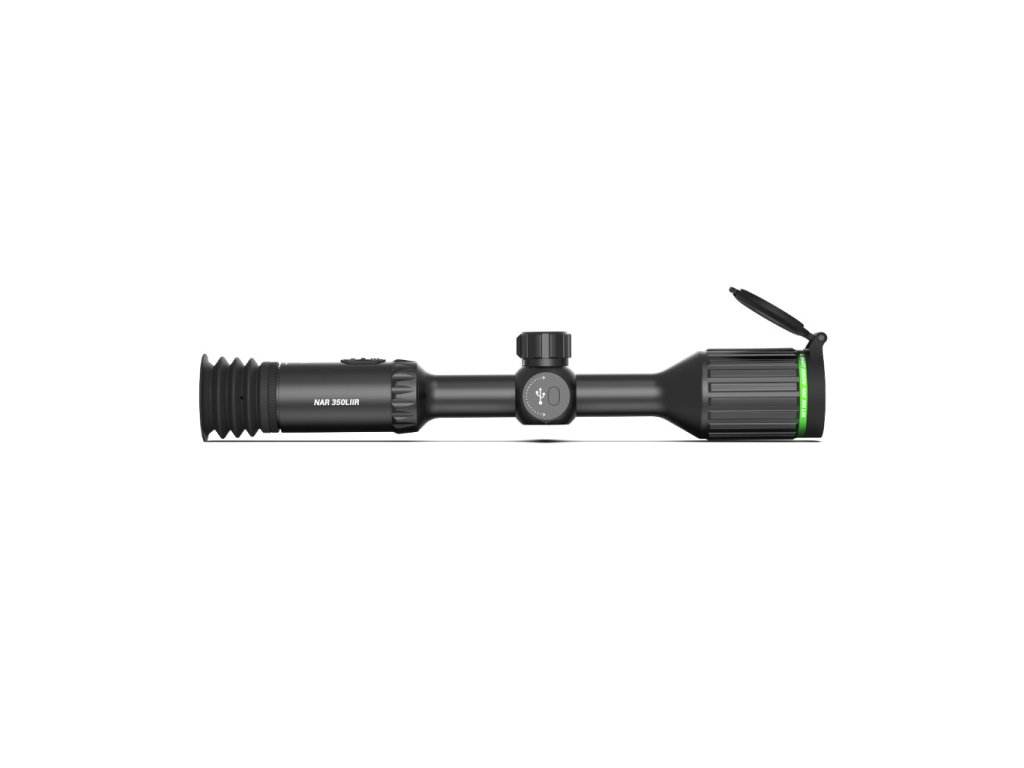

Conotech NIGHT ARROW 350LIIR Thermal Scope

Conotech NIGHT ARROW Thermal Scopes are designed for use on hunting rifles, both at night and during the day in difficult weather conditions (fog, smog, rain) to view obstacles that hinder target detection (branches, tall grass, dense bushes, etc.). 1200G shock resistance, 32 GB of internal memory, Wi-Fi, long operating time and a number of other important features turn the device into a universal hunting tool for even the most demanding professionals.

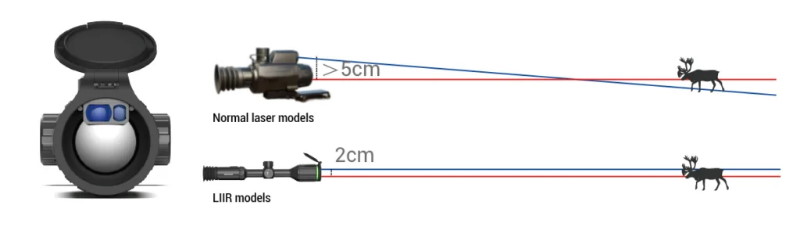

LIIR

LIIR technology, an exclusive patented design by CONOTECH. It ensures perfect alignment of the laser and infrared axes, offering superior precision and reliability in operation.

Ballistic Calculator

Ballistic Calculator, the integrated ballistics calculator is designed to precisely determine the projectile’s path and point of impact by utilizing predefined parameters. This advanced feature ensures that you have the most accurate data at your fingertips for optimal performance.

12μm Advanced Imaging Sensor

The 12μm thermal imaing sensor with less than 20mk NETD offers sharp and richly contrasted images. Compared to a 17μm sensor, it has a smaller FOV, larger magnification and further observation distance.

Ergonomic design

Recoil activated video

Recoil activated video, pre-recording function initiates upon recoil detection, capturing the 10s span before and after your shot.

Quick charge in 3 hours

With a PD20W charger and matehed USB-C cable, Night Arrow supports quick-charge in only 3 hours. It is an excellent feature when you are in a hurry to hunt!

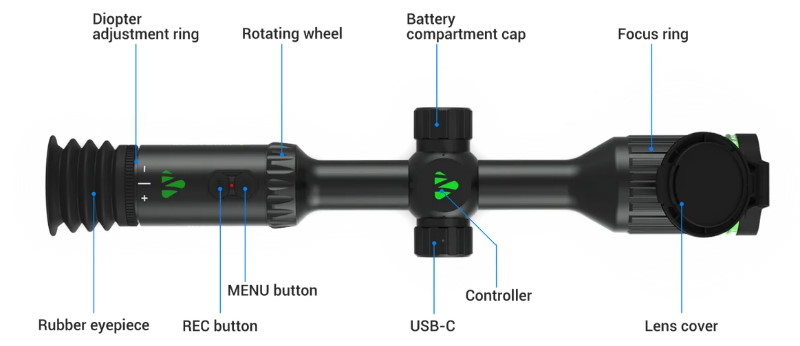

Easier operation

Conotech Night Arrow has a unique wheel design. The rotating wheel operates more precisely and effectively. By rotating the wheel, Night Arrow not only enters the upper/next flat visual menu but also zooms in/out when observating.

0.3 MOA Accuracy

With sophisticated design, Conotech Night Arrow offers superior precision. You will not miss one shot.

Long operating time

Conotech Night Arrow has strong built-in rechargeable battery to keep operating from dusk to sunrise. Moreover, Night Arrow supports an external removable battery to increase your hunting duration to more than 12 hours!

Built-in Mic & Video recording

Built-in Mic & Video recording, equipped with a built-in microphone and video recording capabilities, our device ensures you capture every moment in clarity. Whether you’re documenting observations or reliving memories, the seamless integration of audio and visual tools provides a comprehensive experience.

Specifications

Detector
Type: Uncooled VOx
Resolution: 384x288
Frame rate: 50 Hz
Pixel: 12 µm
Spectral range: 8-14 µm
NETD: less than 20mK
Optical characteristics
Lens: 50 mm
Magnification: 4.8x
Field of view at 100m: 9.2 x 7 m
Close-up range: 3 m
Diopter adjustment: ±5D
Detection distance (Target size 1.7m× 0.5m P(n)=99%) 3540 m
Functions
Digital zoom: 1x/2x/4x
Palette: 6
Firmware update via APP: Yes
Display
Type: OLED
Resolution: 1024x768
External Video: Wi-Fi
Memory: 32 GB
Power supply
Battery: 2×18650 (Built-in battery) + 1×18500 (External battery)
External power supply: 5V-2A, 9V-2A (USB Type-C )
Battery life: 12 h (at t=22°C)
Physical characteristics
Weight without battery: 990 g
Dimensions: 72×89×380 mm
Environmental compatibility
Waterproof: IP67 (1 m/30 min.)
Operating temperature: -20°C +50°C
Storage temperature: -40°C +60°C
Shock resistance: 1200 G, 1 ms
Laser Rangefinder
Safety class for laser equipment according to IEC 60825-1:2014 1
Measuring range 5-1200m
Measurement accuracy ±1m
