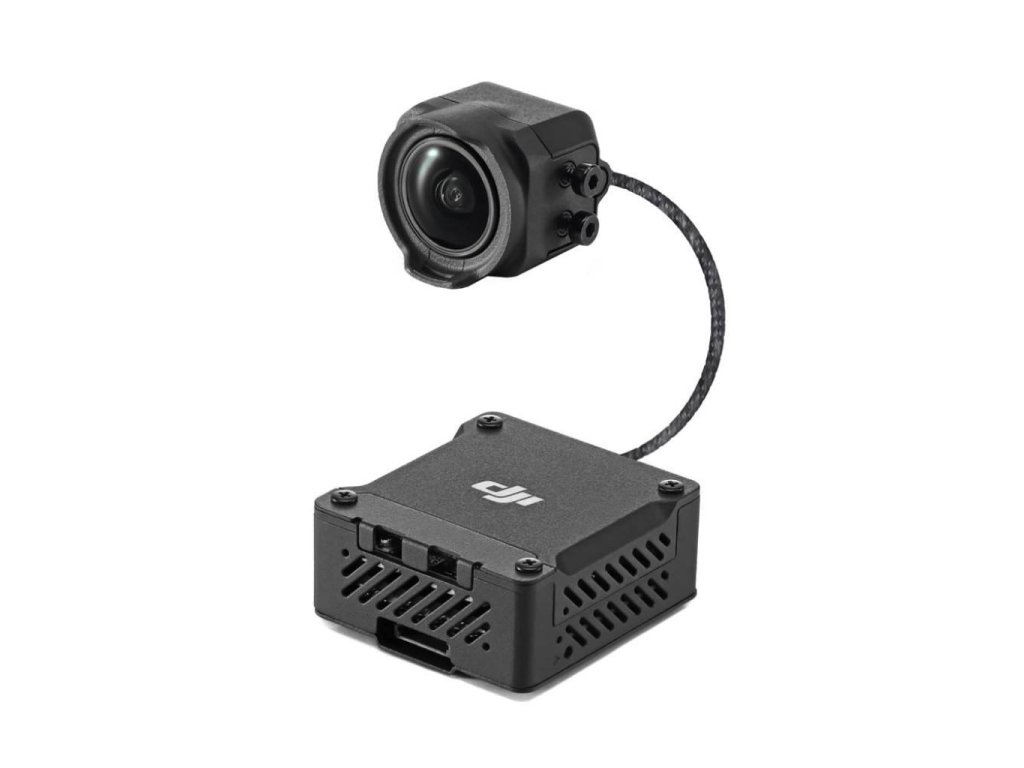

DJI O3 Air Unit

Integrating DJI's cutting-edge video transmission technology into a lightweight and compact body, the DJI O3 Air Unit features excellent video transmission quality with high definition, low latency, and at long distances. It comes with a 1/1.7-inch sensor, a 155° super-wide FOV, and rich compatibility, providing a powerful video transmission solution for your assembled aircraft.

• 1080p/100fps H.265 Max Video Transmission Quality
• 50Mbps Max Video Transmission Bitrate
• 10km Max Video Transmission Range
• 30ms Lowest Video Transmission Latency
• "2T2R" Omnidirectional Antenna
• 1/1.7-inch CMOS Sensor
• 4K/60fps, 155° Super-Wide FOV Video
• Lightweight, Compact, and More Flexible to Assemble

Compatibility

• DJI Goggles 3
• DJI FPV Remote Controller 3
• DJI Goggles 2
• DJI Goggles Integra
• DJI FPV Goggles V2
• DJI FPV Remote Controller 2

DJI O3+ Flagship Transmission
Transform your video transmission experience. It supports a max video transmission quality of 1080p/100fps from up to 10 km. [1]

Next-Level Imaging Performance
Equipped with a 1/1.7-inch sensor, the DJI O3 Air Unit can shoot 4K/60fps video [3] with a 155° [2] super-wide FOV, giving you richer image details. It also comes with 20GB built-in storage. D-Cinelike color mode allows you to make detailed color adjustments to your shots. The camera module can be used with the DJI Avata ND Filters Set (ND8/16/32). [4]

Canvas Mode
Canvas Mode lets you customize the OSD information on the screens of DJI Goggles 2 or DJI FPV Goggles V2, and adjust PID parameters.

Compact and Richly Compatible
Packed with richer compatibility in a lightweight body. DJI Goggles 2 and DJI FPV Remote Controller 2 are also smaller in size. [5]

Tips

1. Using DJI Goggles 2 and tested in an outdoor open environment without interference.
2. The 155° FOV is only available when using the 4:3 aspect ratio, and when the video recording specification is at 2.7K@50/60fps or 1080p@50fps/60fps; the aspect ratio is 16:9, and the video recording specification is at 4K@50/60fps, 2.7K@50/60fps, or 1080p@50/60fps.
3. 4K/60fps videos do not support the aspect ratio of 4:3, and only support that of 16:9.
4. Sold separately.
5. Compared with DJI FPV Goggles V2 and DJI FPV Remote Controller.

Specs

Camera

Sensor 1/1.7-inch CMOS
Effective Pixels: 48 MP
Lens
FOV: 155°
Equivalent Focal Length: 12.7 mm
Focal Length: 2.34 mm
Aperture: f/2.8
Focus Mode: FF
Focus Range: 0.6 m to ∞
ISO Range
100-6400 (Auto)
100-25600 (Manual)
Shutter
Rolling Shutter
FOV 155°
Video Resolution
With DJI Goggles 2:
4K@30/50/60/100/120fps
2.7K@30/50/60/100/120fps
1080p@30/50/60/100/120fps
With DJI FPV Goggles V2:
4K@30/50/60/100/120fps
2.7K@30/50/60/100/120fps
1080p@30/50/60/100/120fps
Video Format MP4
EIS Supports RockSteady
Weight Approx. 8.3 g (coaxial cable included)

Air Unit

Weight
Air Unit (camera module excluded): Approx. 28 g
Air Unit (camera module included): Approx. 36.4 g
Antenna: Approx. 3 g
Dimensions
Transmission Module (L×W×H): 32.5×30.5×14.5 mm
Camera Module (L×W×H): 21.2×20×19.5 mm
Coaxial Cable: 115 mm
3-in-1 Cable: 100 mm
Antenna: 85 mm
Communication Frequency
2.400-2.4835 GHz (RX only)
5.725-5.850 GHz (RX and TX) [1]
Transmission Power (EIRP)
FCC: < 33 dBm
CE: < 14 dBm
SRRC: < 30 dBm
End-to-End Latency [2]
With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Range [3] 10 km (FCC), 2 km (CE), 6 km (SRRC)
Supported Flight Control System The DJI O3 Air Unit supports Betaflight 4.3.0 and higher versions.
Input Voltage 7.4-26.4 V
Operating Temperature -10º to 40º C (14° to 104° F)
Channels
Supports auto mode
Supports manual mode: 40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels
Channels Info FCC/SRRC/CE:
40 MHz: Channel 1: 5794.5 MHz
20 MHz/10 MHz: Channel 1: 5768.5 MHz; Channel 2: 5804.5 MHz; Channel 3: 5839.5 MHz
Supported SD Cards microSD (up to 256 GB)
Recommended microSD Cards
SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Kingston Canvas Go!Plus U3 V30 A2 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung PRO Plus V30 U3 V30 A2 256GB microSDXC
Supported DJI Goggles DJI Goggles 2 and DJI FPV Goggles V2
Supported DJI Remote Controller DJI FPV Remote Controller 2

Footnotes

1. The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.
2. Tested in an outdoor open environment without interference. The video transmission latency data varies with different models.
3. Data is tested under different standards in an outdoor open environment without interference. Only to serve as a reference for the max one-way communication distance without considering RTH. Please pay attention to the RTH prompts during actual flight. Max one-way communication distance of DJI O3 Air Unit in countries/regions of different standards:
FCC: United States, Australia, Canada, Hong Kong, Taiwan, Chile, Colombia, Puerto Rico, and other regions.
SRRC: Mainland China.
CE: UK, France, Germany, Portugal, Spain, Switzerland, Macau, New Zealand, UAE, and other regions.

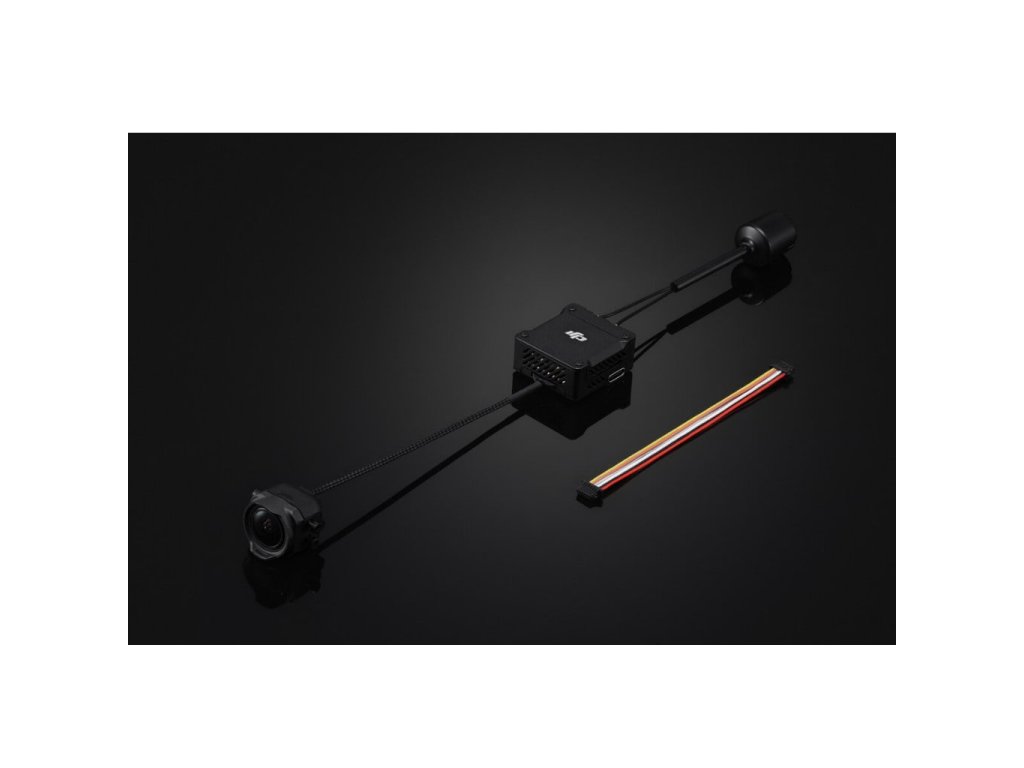

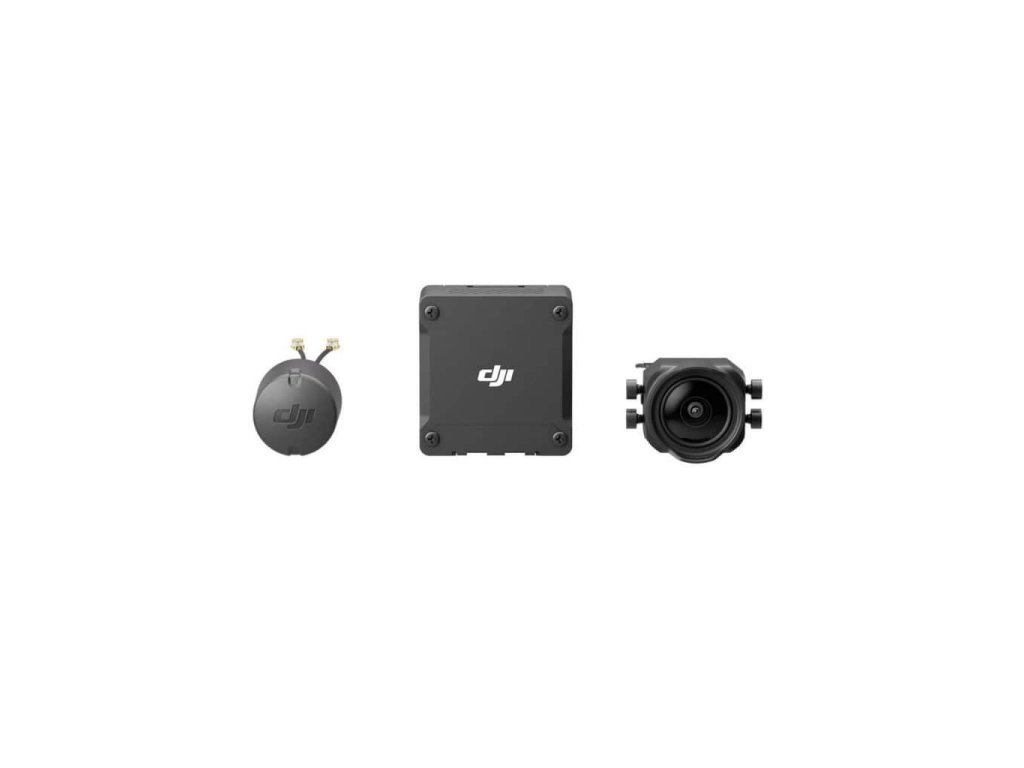

In The Box

DJI O3 Air Unit Camera Module × 1
DJI O3 Air Unit Transmission Module × 1
DJI O3 Air Unit Antenna × 1
DJI O3 Air Unit 3-in-1 Cable × 1
