Product detailed description

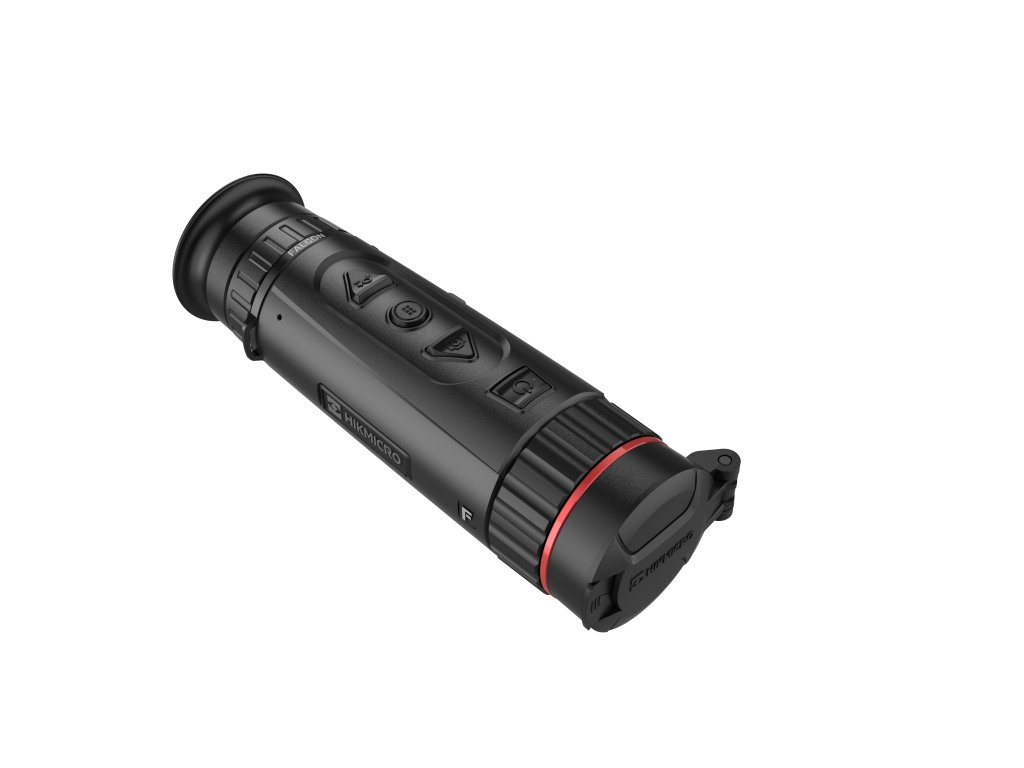

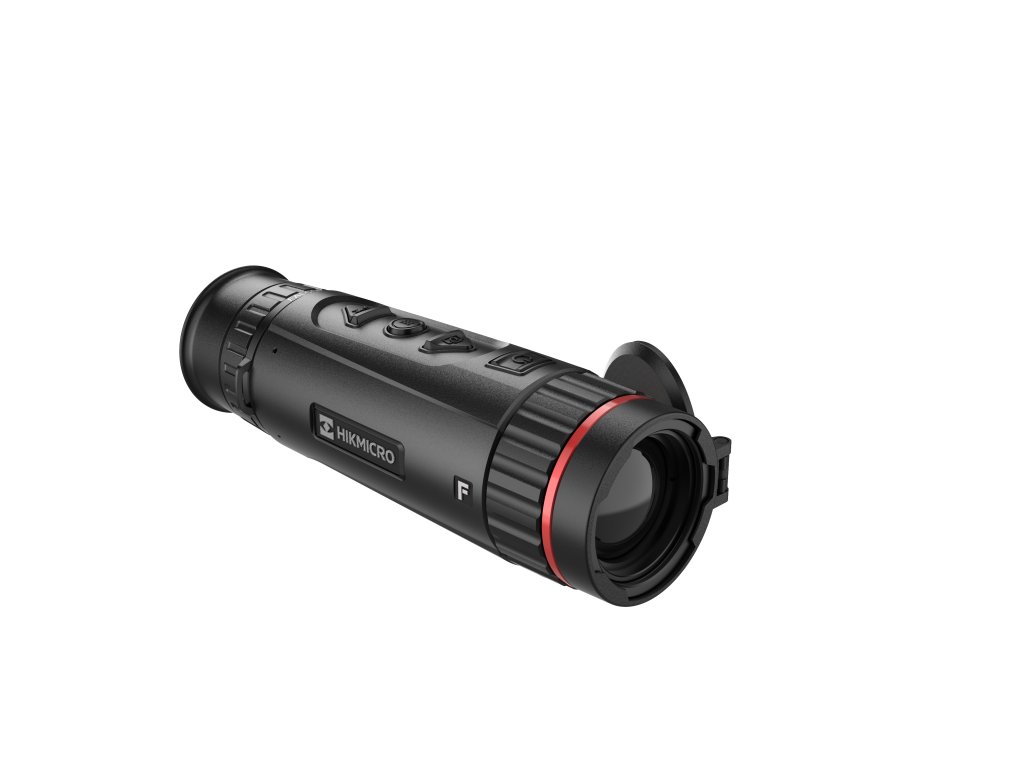

Hikmicro Falcon FH35 thermal monocular

The HIKMICRO Falcon FH35 thermal monocular (HM-TS43-35XG/W-FH35) is equipped with a high-quality 384×288 px resolution, 12µm (12 micron technology) with 20mK sensitivity, 35mm lens focal length and 8x digital zoom. Thanks to its highly sensitive core, the Hikmicro Falcon will give you an absolutely clear image even in complete darkness.

The Hikmicro Falcon supports hot track (tracking the hottest point in the image), ratio rangefinder and Wi-Fi. The FH35&nbspallows detection up to 1800m and the battery life is a respectable 7 hours of continuous operation.

FH35 is equipped with the latest image processing techniques:

Automatic Gain Control (AGC: Auto Gain Control): AGC technology automatically adjusts the dynamic range of the image. Hikvision thermal cameras use a unique technology called adaptive AGC, which is much more advanced than the common so-called linear AGC used in thermal cameras from other manufacturers.

Left: classic thermal imaging. Right: Hikmicro thermal imaging with AGC.

Digital Detail Enhancement (DDE) DDE technology uses advanced algorithms to render details sharper even when they are in low-contrast areas (warm/cold objects).

Left: classic thermal imaging. Right: Hikmicro thermal imaging with DDE.

3-Dimensional Digital Noise Reduction (3D DNR) 3D DNR technology very effectively removes grainy or blurry parts of the observed scene. The resulting image is much clearer than with instruments using traditional two-dimensional noise reduction (2D DNR).

Left: classic thermal imaging. Right: Hikmicro thermal imaging with 3D DNR

HIKMICRO is one of the few manufacturers to produce its own 384x288 resolution, VOx-type cores, making the latest thermal imaging systems great value for money. The lower the NETD value (20mk), the better the sensor can record small temperature differences of objects with perfect images!

Built-in thermal detector with high sensitivity of 20mk provides a clear image even in harsh environmental conditions such as darkness, fog, smoke, dust, rain, snow, forest cover, etc.

Specifications:

*Detection is dependent on meteorological conditions (snow, rain, fog, ambient temperature, etc.) The actual detection performance can be both higher and lower.

Scope of Package:

• HIKMICRO FALCON FH35 thermal imaging camera
• Manual in Czech
• Lens dusting tool
• USB-C cable
• Thermal Camera Protective Bag
• Handcuff
• Carrying case
• Battery Charger for 18650 batteries
• 2x 18650 batteries
• Neck Loop
