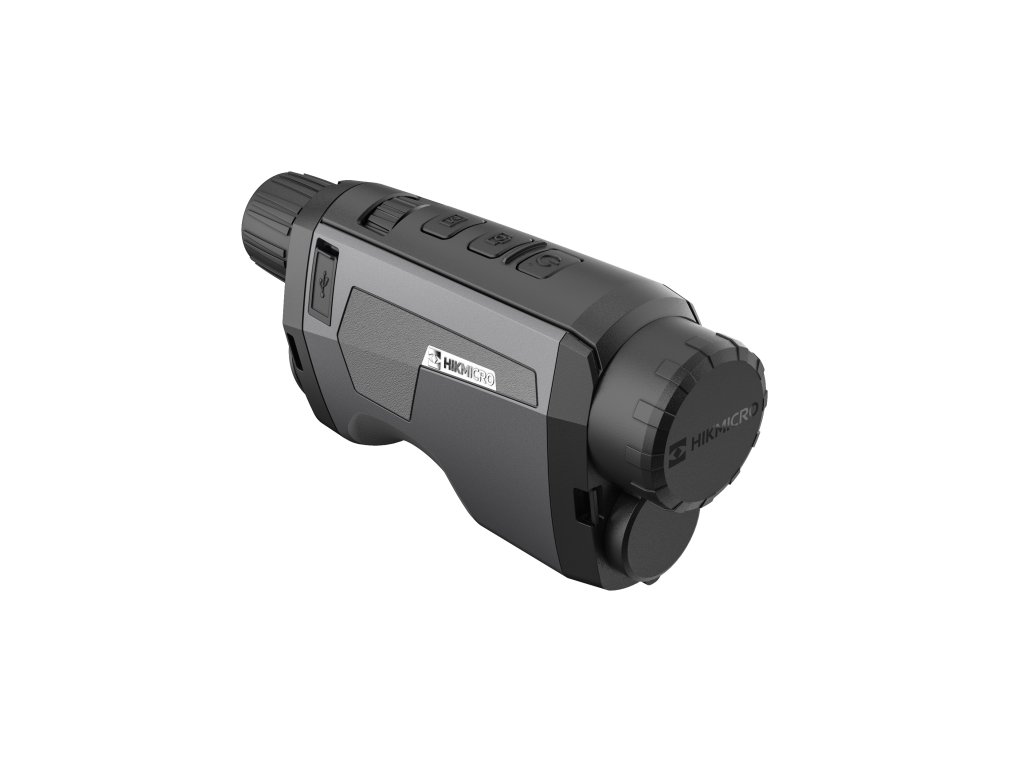

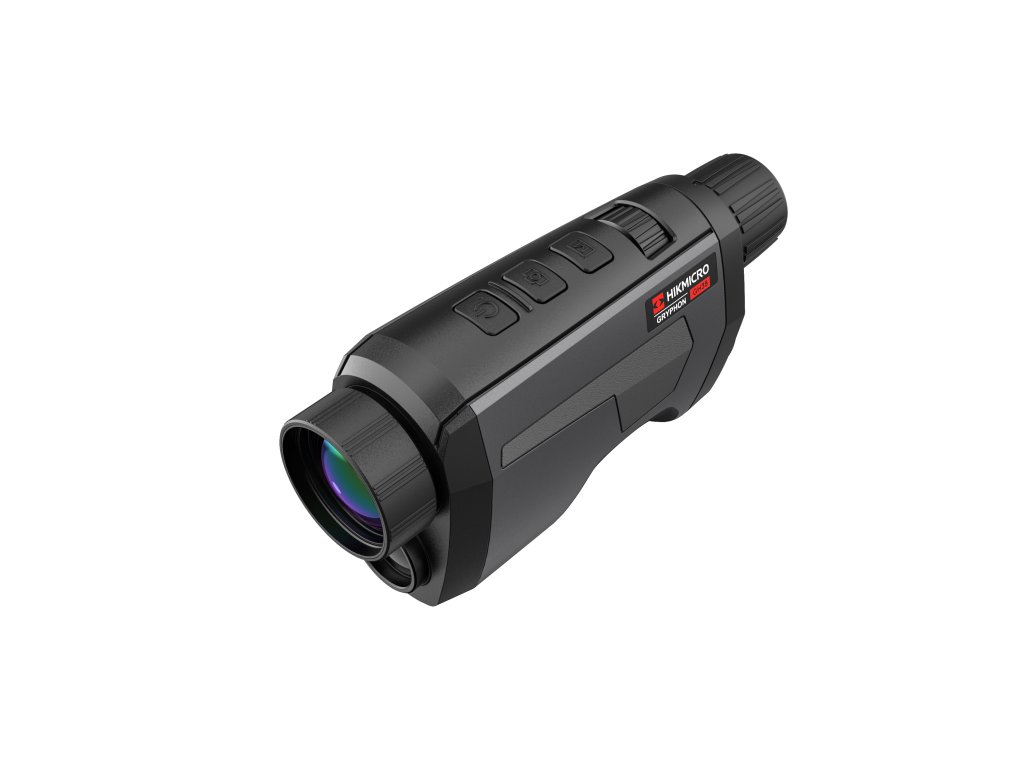

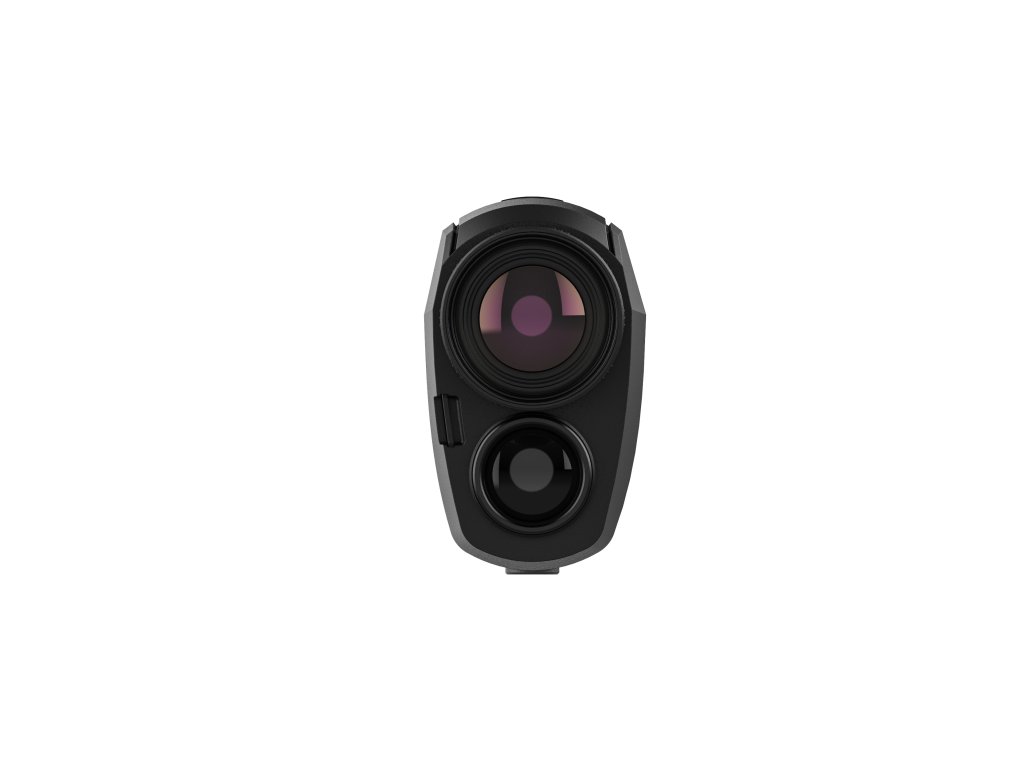

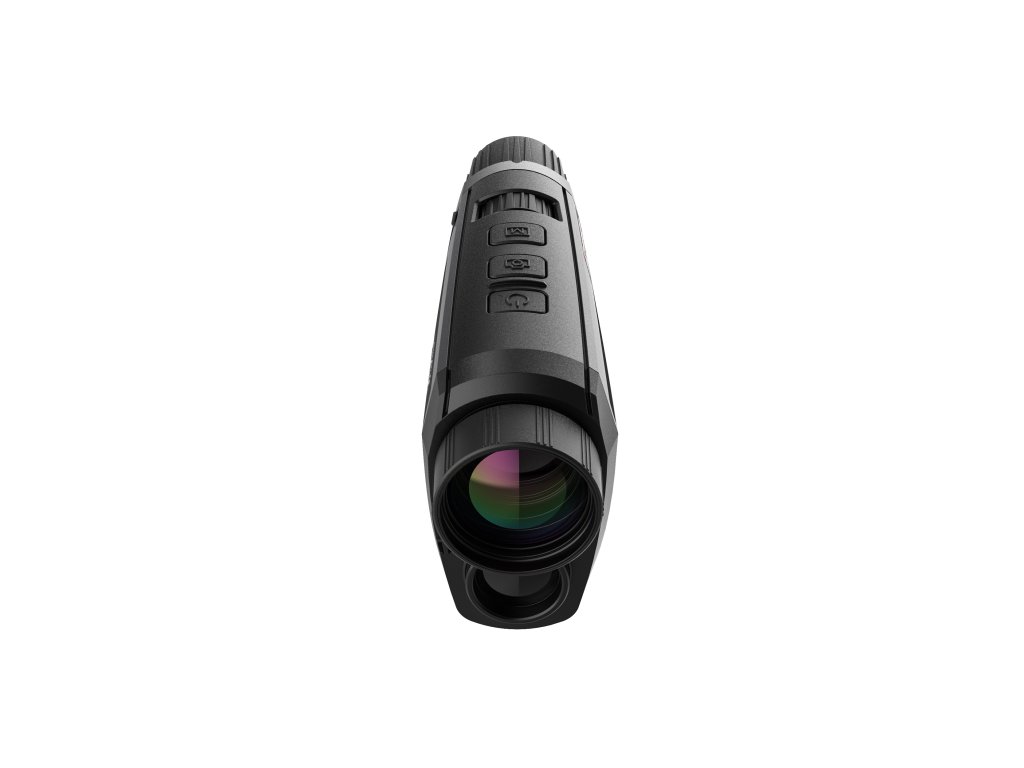

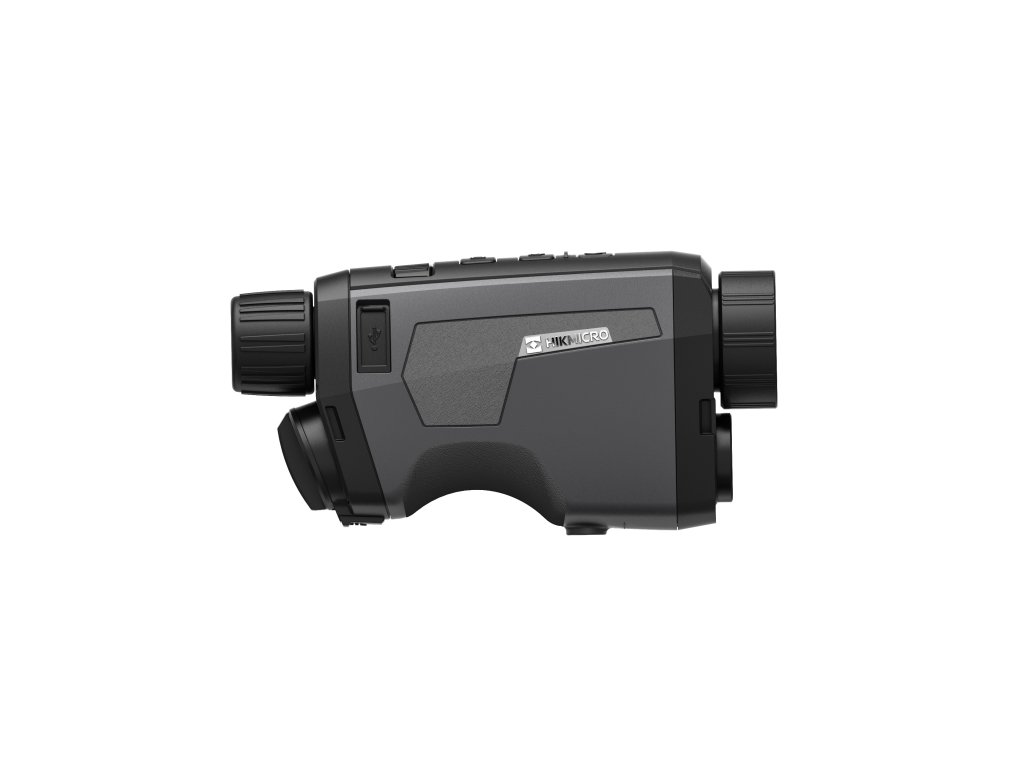

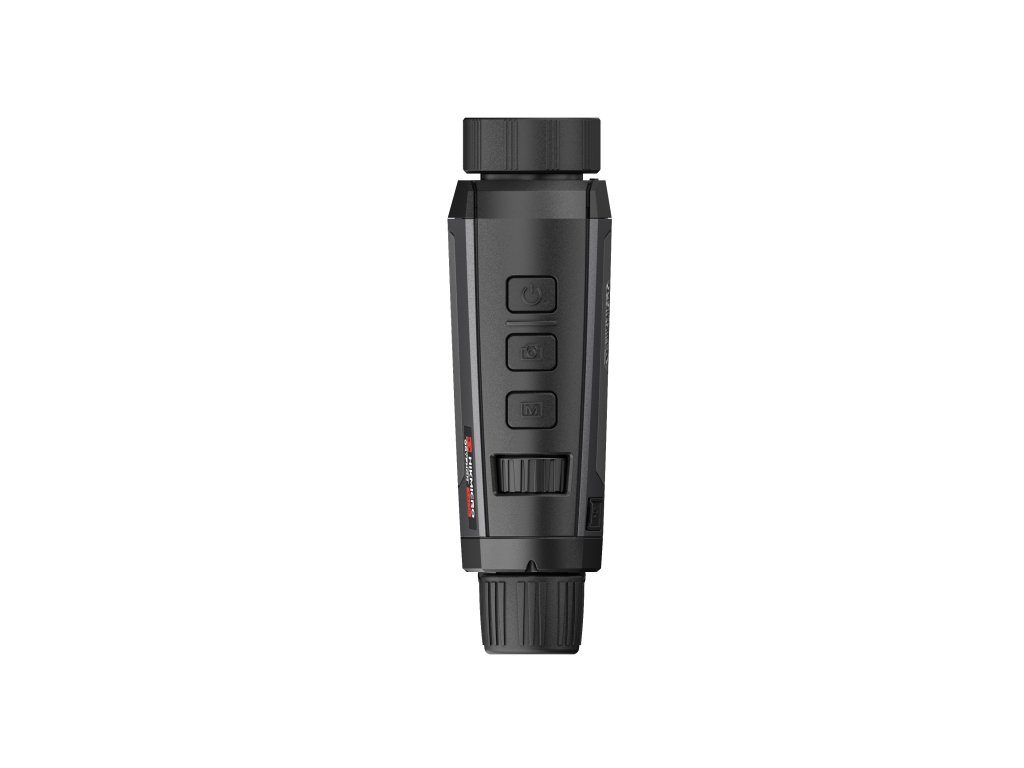

HIKMICRO GRYPHON GQ35

The revolutionary thermal monocular + night vision in one, this is the Hikmicro Gryphon. The GQ35 model(HM-TS23-35QG/WLV-GQ35) is equipped with a high quality 640x512px 12µm, VOx resolution core and a 1024×768 OLED display.The model has a thermal imaging lens with a focal length of 35mm and a night vision lens with a focal length of 22mm.

Other Devices Gryphon supports hot spot (hottest spot in the image), rangefinder and Wi-Fi. The GQ35 is Hikmicro's top-of-the-line model and enables detection up to 1800 m, battery life is up to 4.5 hours of operation. The high resolution 640x512px 12µm, VOx core ensures that the image is still sharp (no cubing) when zoomed in.

Gryphon GQ35 is equipped with the latest image processing methods:

Automatic Gain Control (AGC: Auto Gain Control): AGC technology automatically adjusts the dynamic range of the image. Hikvision thermal cameras use a unique technology called adaptive AGC, which is much more advanced than the common so-called linear AGC used in thermal cameras from other manufacturers.

Left: classic thermal imaging. Right: Hikmicro thermal imaging with AGC.

Digital Detail Enhancement (DDE) DDE technology uses advanced algorithms to render details sharper even when they are in low-contrast areas (warm/cold objects).

Left: classic thermal imaging. Right: Hikmicro thermal imaging with DDE.

3-Dimensional Digital Noise Reduction (3D DNR) 3D DNR technology very effectively removes grainy or blurry parts of the observed scene. The resulting image is much clearer than with instruments using traditional two-dimensional noise reduction (2D DNR).

Left: classic thermal imaging. Right: Hikmicro thermal imaging with 3D DNR

HIKMICRO is one of the few manufacturers to produce its own 640x512px 12µm, VOx type cores, making the latest thermal imaging in a great price/performance ratio. The lower the NETD value (35mk), the better the sensor can record small temperature differences of objects with perfect images!

Built-in thermal detector with high sensitivity of 35mk provides a clear image even in harsh environmental conditions such as darkness, fog, smoke, dust, rain, snow, forest cover, etc.

Specification:

Package Content:

• Term vision and night vision in one HikMicro Gryphon GQ35
• Rechargeable battery type 18650
• Protective bag for thermal imaging
• Manual in Czech
• Handcuff
