InfiRay CLIP CH50 V2

Product detailed description

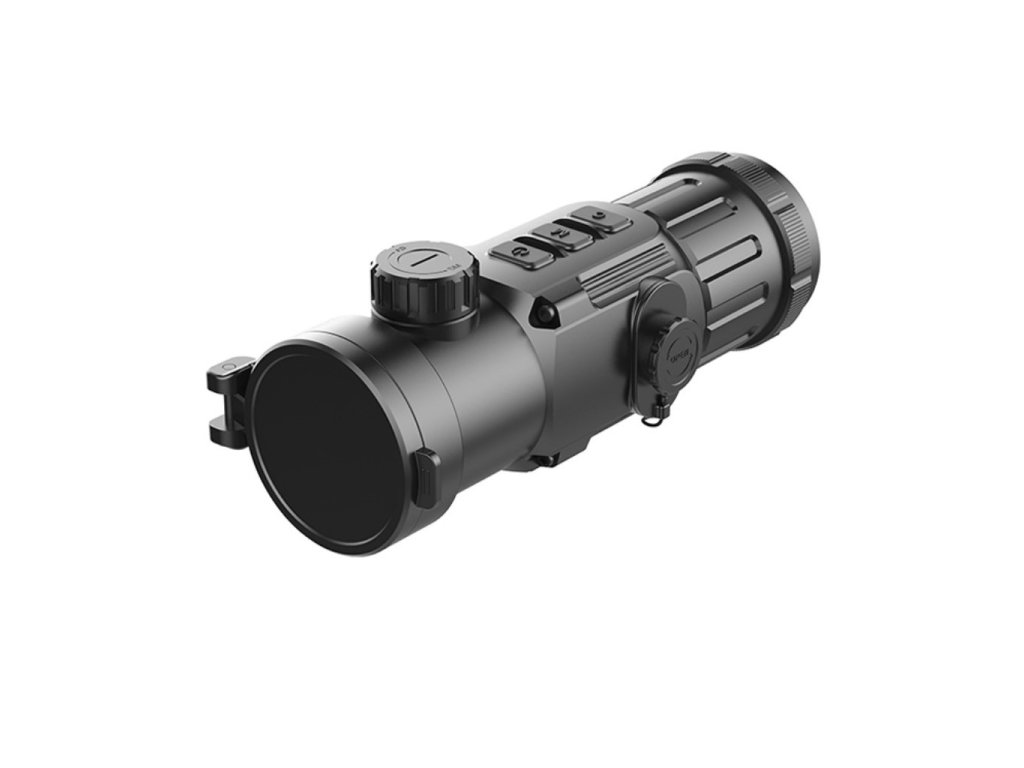

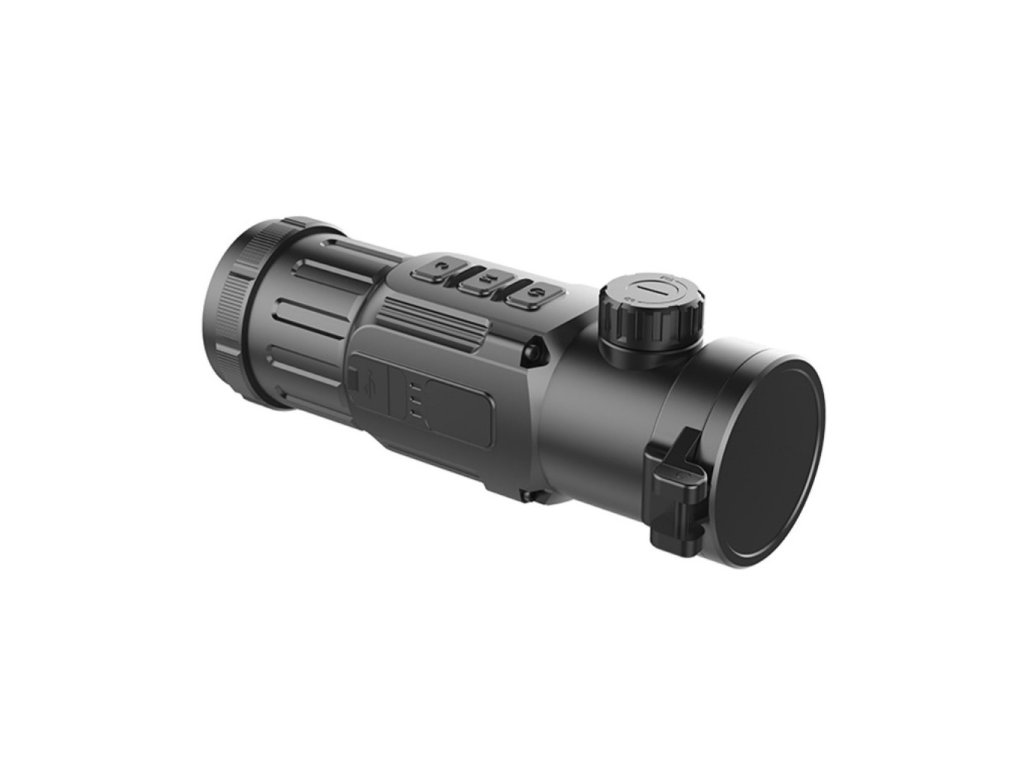

InfiRay CLIP CH50 V2 is a front attachment designed as the infrared expansion device of the day-light sight. Different from the night vision device based on image enhancement, Clip CH50 V2 doesn’t need external light source and isn’t influenced by strong light exposure. It can be used in the night or bad weather conditions such as fog, rain, smog and can detect the objects through obstacles such as branch, tall grass, dense bushes and so on. Clip CH50 V2 has a wide range application including night hunting, observation and terrain orientation, search and rescue operations.

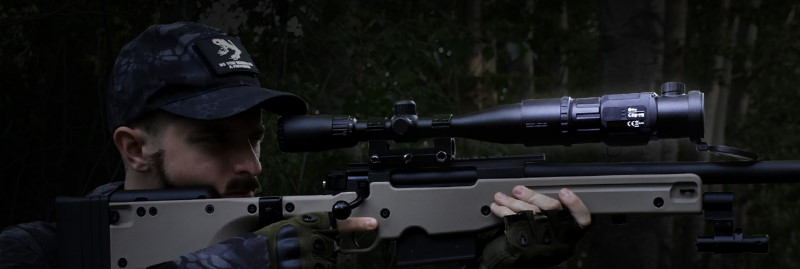

Using the Clip Series Front Attachment includes several benefits over night hunting with traditional optics or even the night vision devices. Attaching the Clip Series to a traditional scope delivers the same creature comforts of shooting with day optics you are accustomed to, including your existing reticle and eye relief. The Clip Series Front Attachment even allows you to continue utilizing your riflescope's variable magnification.

No Re-Zeroing required and Quick attached

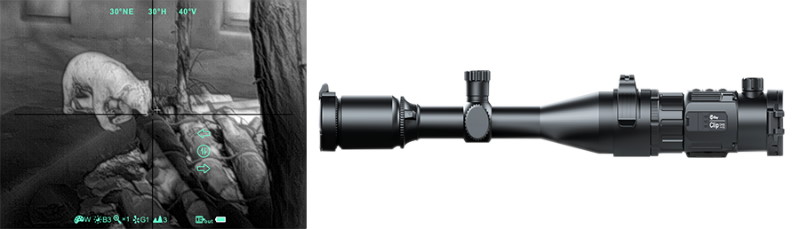

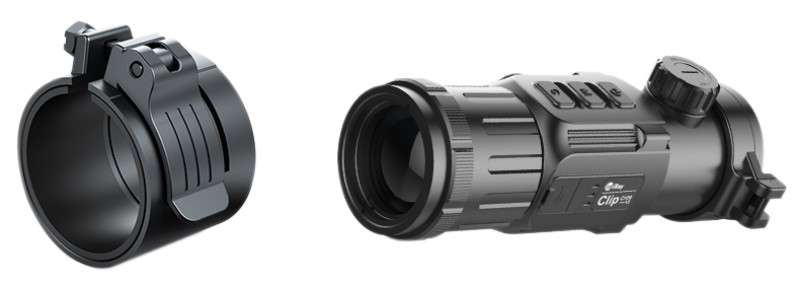

With the special calibration to the front thermal attachment InfiRay CH50 series, No Re-zeroing is required after attaching to the day scopes. Clamp and Shoot, that’s it. With the quick release IAR-adapter mount, the Clip CH50 series can be easily attached to or detached from day optics in seconds without losing zeroing. The mount is capable of performing precise alignment of the attachment’s field of view with central point of the day optics in order to achieve the optimal viewing position.

Compatible with 1-9X day optics

Benefit from the 48mm oversized eyepiece, InfiRay Clip CH50 V2 works best with 1-9× magnification optical sights. With the IAR-adapter, you can attach the Clip CH50 V2to most traditional rifle scopes with objective lens diameters of 40mm-55mm and turn the optical sights into thermal imaging devices without affecting the point-of-impact.

Features

• 12μm thermal imaging detector
• Detection range beyond 2.5km
• 1024×768 high resolution AMOLED display
• No rezeroing required and quick attached
• 48mm long focal length eyepiece
• E-zoom with aiming accuracy unaffected
• Familiar precision
• Bluetooth remote control
• Four image modes – white hot, black hot, red hot, pseudo color
• Monocular digital zoom: ×1, ×2, ×4
• Recommended magnification of the day sight: ×1-×9
• Type-C interface power supply and data transmission
• PAL analog video output
• Build-in compass, motion sensor
• IP66 protection level
• Compact size and great impact resistance

Specifications

Detector Parameters
Detector Type Vox Uncooled
Resolution 640*512
Pixel Size 12um
NETD ≤40mk
Frame Rate 50Hz
Optics Parameters
Objective Lens 50mm
Field of View 8.8°×7.0°
Recommended magnification of the day sight ×1-×9
E-zoom ×1 / ×2 / ×4
Detection Range (Target size: 1.7m×0.5m, P(n)=99%) 2597m
Display Parameters
Type OLED Resolution 1024×768
Electrical Parameters
Battery CR123×2 / 16650×2
Max. Battery Life 4h / 7h
Power Consumption ＜1200mW
External Interface USB Interface Type-C
Video Output PAL (RCA Port)
External Power Type-C
Functions
Digital Compass √
Motion Sensor √
Remote Control Bluetooth
Physic Parameters
IP Rating IP66
Weight (without batteries) ＜570g
Dimension 175×74×68mm
Adapter Ring M52×0.75
