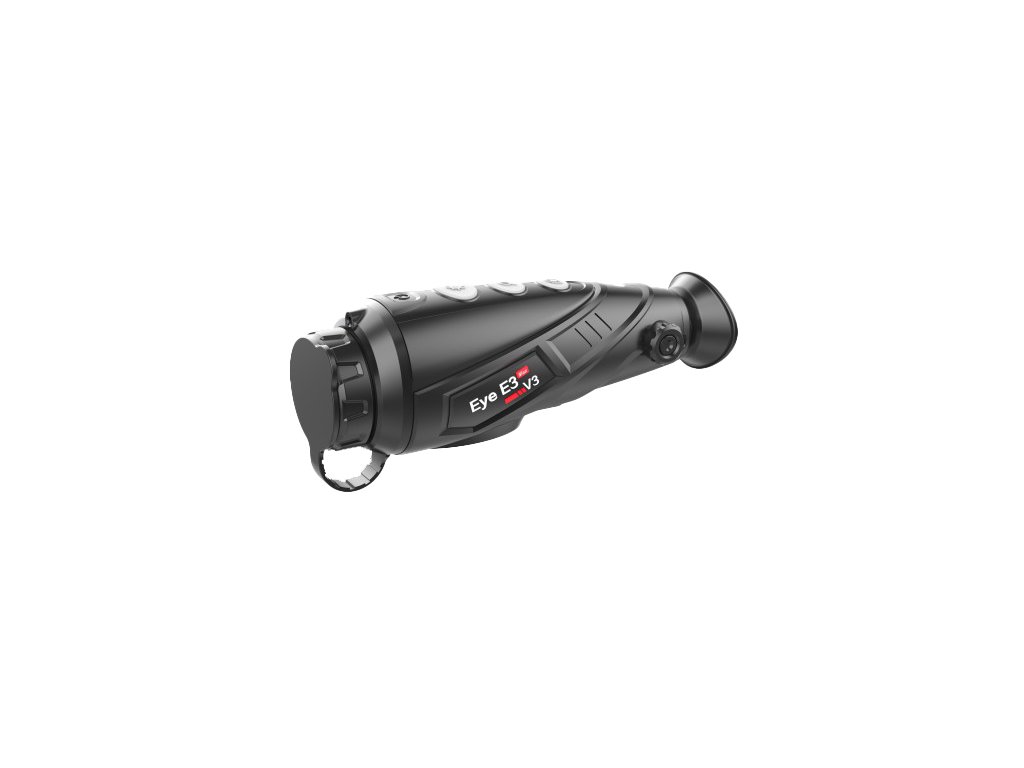

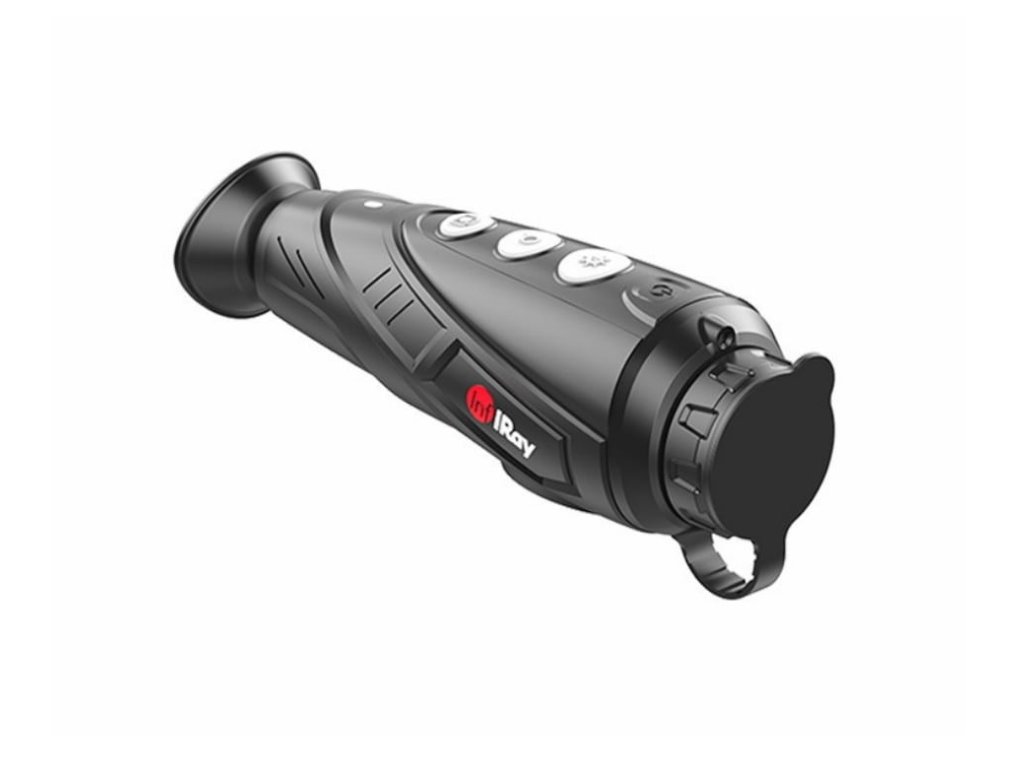

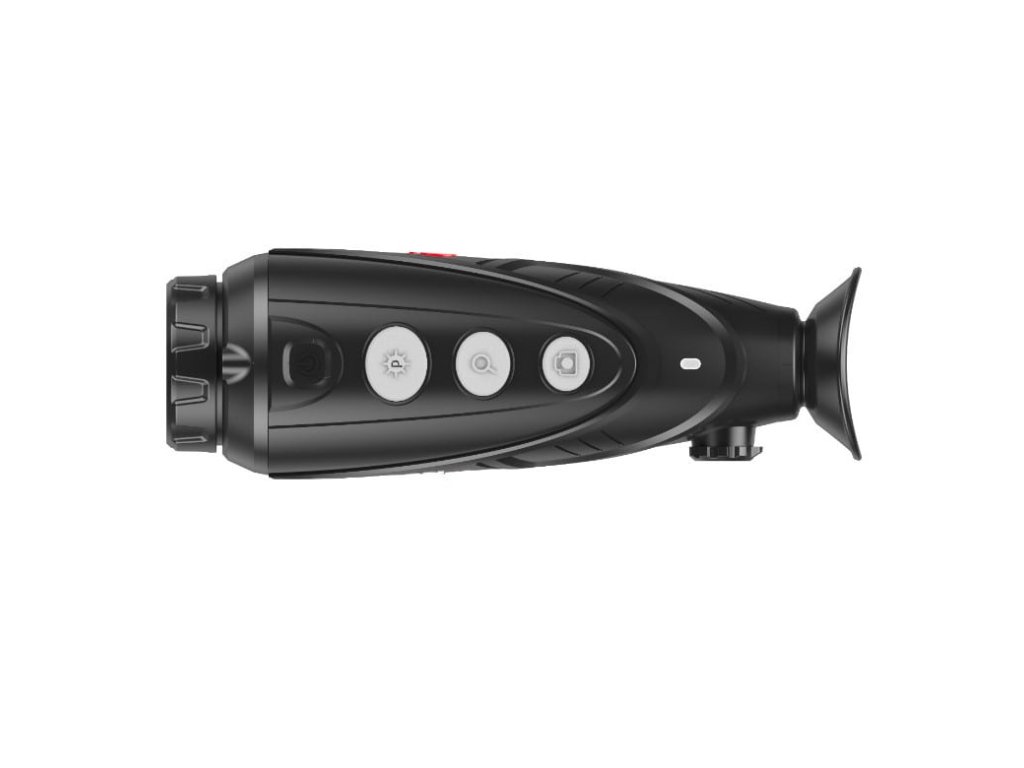

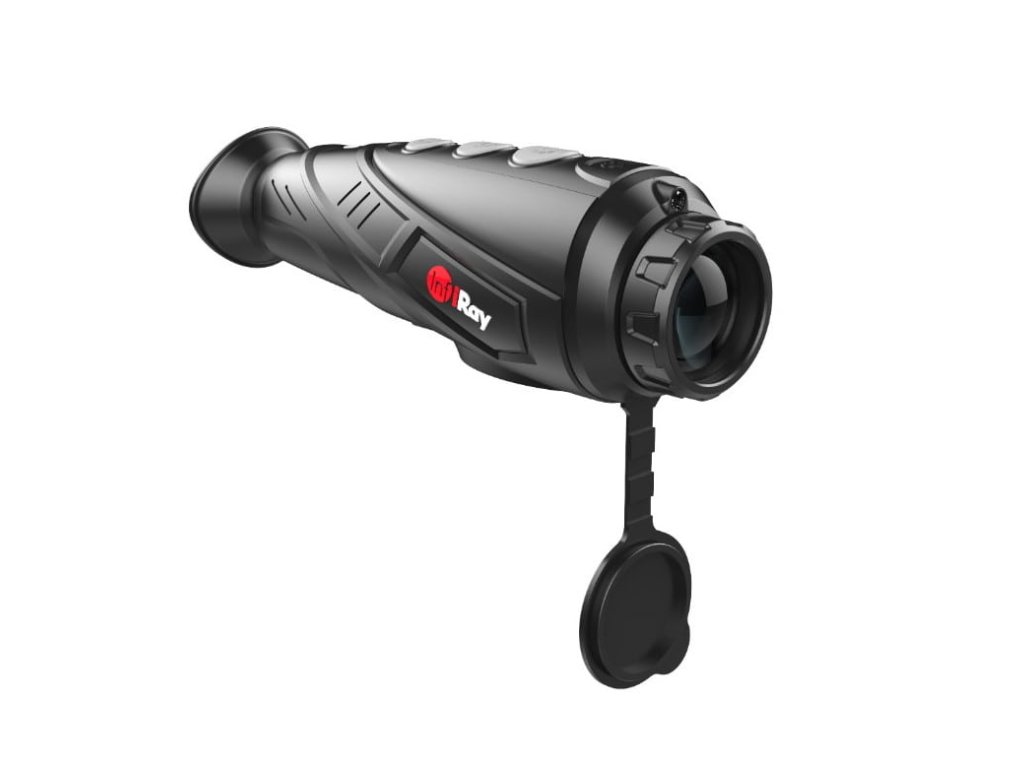

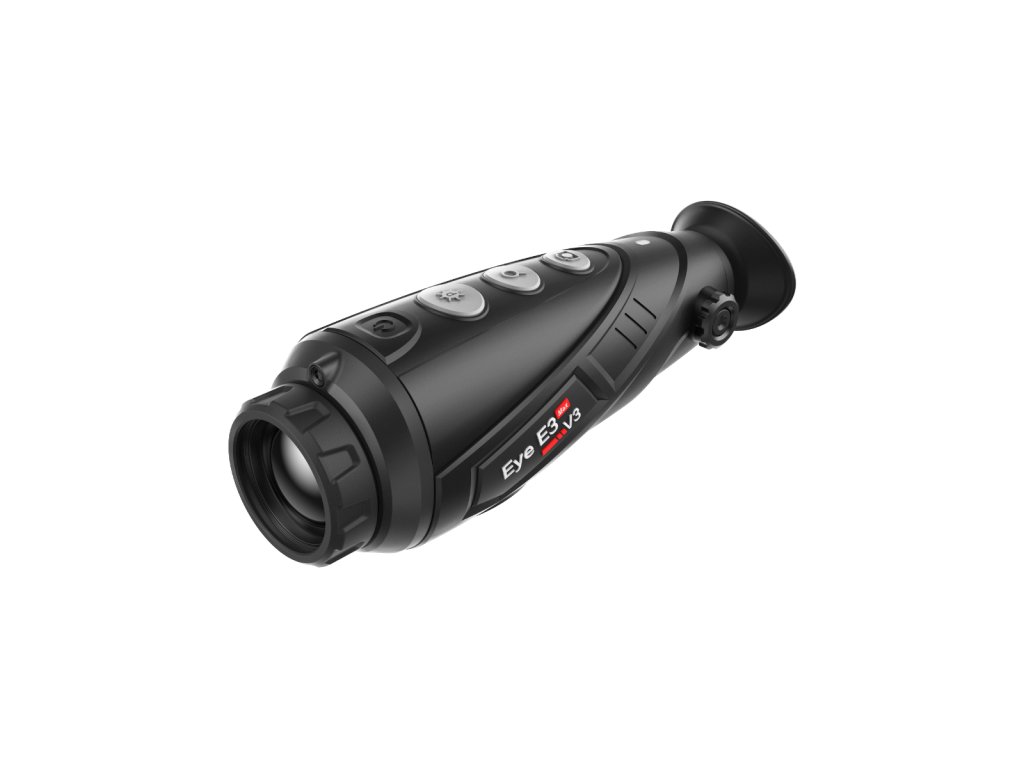

InfiRay E3 MAX V3

Product detailed description

InfiRay EYE II E3 MAX V3.0 Thermal Imaging Monocular is designed for users requiring high image quality. It is ideal for avid hunters who do not want to give up sharp details even in digital zoom mode. Thanks to the new 12um detector it has been possible to significantly increase the operating time. With a 384×288 detector, lower power consumption and multi-functional operations, you can record the perfect moment of your outdoor activities.

Pocket-sized Thermal Imaging Monocular

InfiRay EYE Ⅱ series is a pocket-sized thermal imaging monocular for outdoor exploration at night and in low-light conditions. EYE Ⅱ shows your surroundings and helps you see people, objects and animals from more than a thousand meters away. The easy-to-use EYE Ⅱ camera with photo and video recording capabilities is an ideal companion whether you are in the countryside or in your own backyard.

High Image Quality

InfiRay Eye Ⅱ series is equipped with a high-performance Vox detector independently developed by IRay, which produces highly detailed thermal images, making it much easier to find targets in the dark. There are two types of detector resolutions: 384x288 and 640x512. The EyeⅡ series has excellent performance in the critical temperature range.

12 μm Ceramic Detector

The V3.0 series is equipped with a new detector in a ceramic housing, which is lighter, consumes less power and lasts longer.

OLED display

The high-resolution display of 1024x768 provides a clear image and bright colors.

Long detection range

Depending on the model, the V3.0 series is capable of detecting a target of average human height, dressed in outerwear, at a distance of up to 2600 m in complete darkness.

Standby function

When it is necessary to temporarily stop observation, the user can use the standby function. Provides the necessary level of camouflage (no light from the eyepiece of the device) between observation sessions, as well as a quick restart of observation (when the display is off, all other systems are working; for normal operation, simply turn on the power again on the display).

High Frame Rate

And the 50Hz refresh rate ensures you capture every moment that matters.

PIP Features

Picture-in-Picture enhances accuracy by providing a 2x magnified image of the reticle area at the top of the display. This helps magnify the target while keeping the rest of the field of view visible.

5 Color Palettes

The Eye II series provides over 5 color palettes for precise color temperature mapping, including White Hot, Black Hot, Red Hot, Color, and Hot Target Highlight. Switching between different color palettes is quick and easy.

Stadiametric Range Finder

Based on the estimated height of targets, the user can quickly and easily determine the approximate distance to the target with the built-in stadiametric range finder.

Hot Target Tracking

Automatically track the hottest spot in the scene and quickly locate the target.

Built-in DVR and Wi-Fi connection

The monocular has a built-in 32 GB memory for storing photos and videos, as well as a WiFi module that allows 4 connections to be connected simultaneously.

Specification

Detection range: 1818 m
(Target size: 1.7 m × 0.5 m, P (n) = 99%)
Detector resolution: 384 × 288,12 μm
NETD: ≤ 25 mK
Frame rate: 50 Hz
Lens: 35 mm
Field of view: 7.5°×5.7°
Display: OLED, 1024x768
Magnification 3.5-14x
Max. battery life: 7 hours (power saving mode)
Dimensions: 186 × 65 × 64 mm
Weight: 420 g
