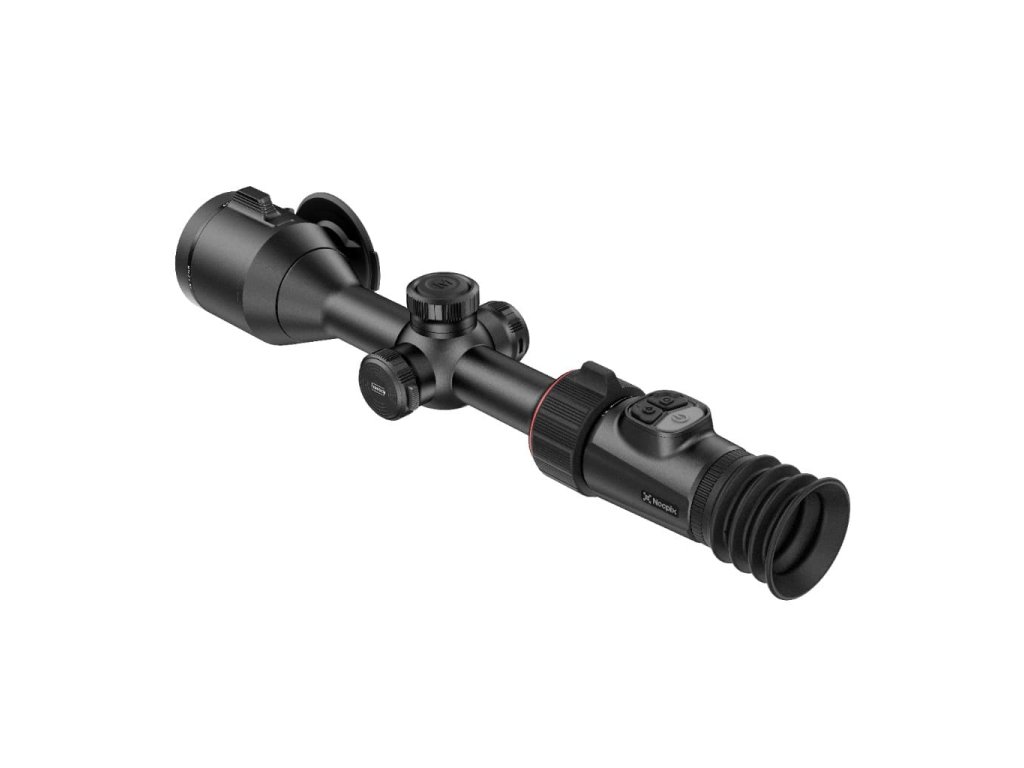

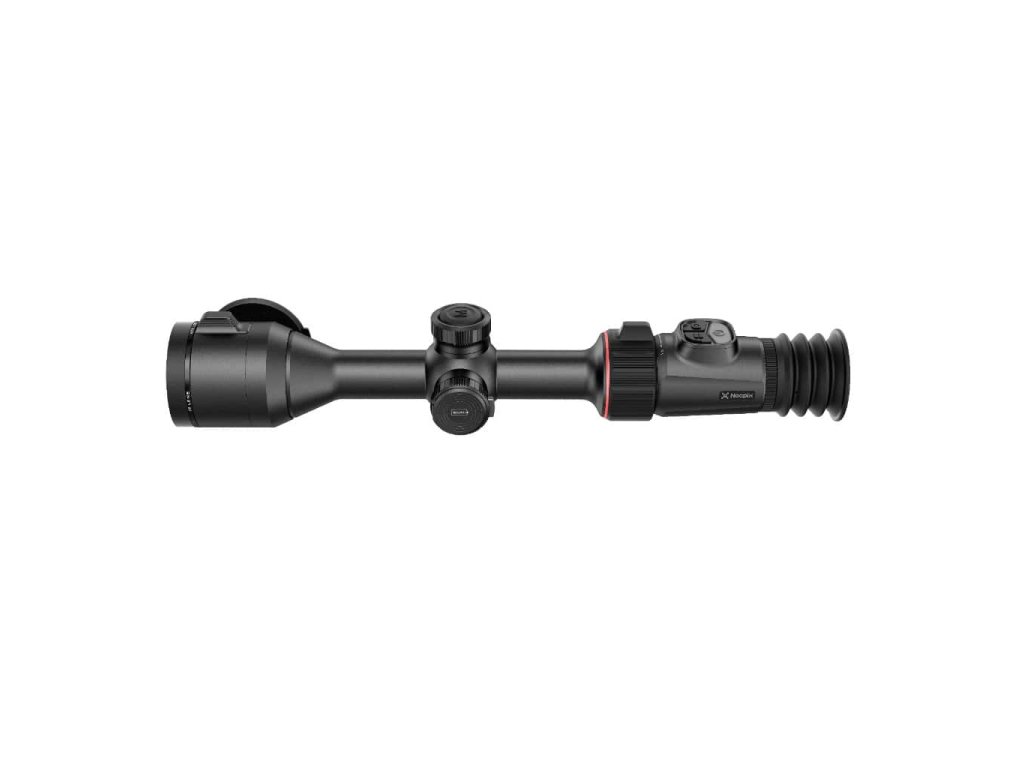

Nocpix ACE L35

Product detailed description

Introducing Nocpix ACE series, the flagship thermal riflescope designed for all hunting environments. It features a self-developed high-resolution thermal sensor and advanced Reality+ and Vision+ systems. Deliver unparalleled image quality and superior performance.

Nocpix ACE series is an infrared scope for outdoor hunting. Designed based on infrared thermal imaging principles, it requires no external light sources during the day and at night, in all hard weather conditions (such as rain, snow, fog, and haze). It can be used without being affected by strong light and to observe even targets behind obstacles (such as branches, grass, and shrubs).

ACE series has a variety of battery-powered solutions with long operating hours, and can be widely used for hunting, observation and positioning in low visibility conditions.

Features

• NETD 15mK
• Ocular zoom
• Recoil Activated Video function
• Gallery function
• Dual power supply system
• Built-in memory, supporting photographing, video recording
• Built-in Wi-Fi module, supporting APP connection
• Built-in compass and motion sensor
• PIP (picture-in-picture) function
• Shut less function
• Pixel defect correction
• Convenient operation interface

Specification

Thermal sensor 384x288 & 12μm
NETD ≤ 18 mK
Frame rate 60 Hz
Objective lens 35 mm F0.9
Field of view(H×V), °/m@100m 7.5x5.7 /13×10
Magnification 4~16x
Ocular zoom 1~3x
Detective range (Target size:1.7m×0.5m, P(n)=99%) 1800 m
Exit relief 50 mm
Exit pupil diameter 8 mm
Diopter -5~5 D
Display type 1.03inch AMOLED
Resolution 2560x2560
Battery Built-in 4000mAh & 18650 battery
Max. operation time (t=22℃) 7 h
Photo & Video & Audio recording Yes
Memory capacity 64GB
WIFI & APP Yes
Weight (with battery) 1050 g
Dimensions 350×90×62 mm
