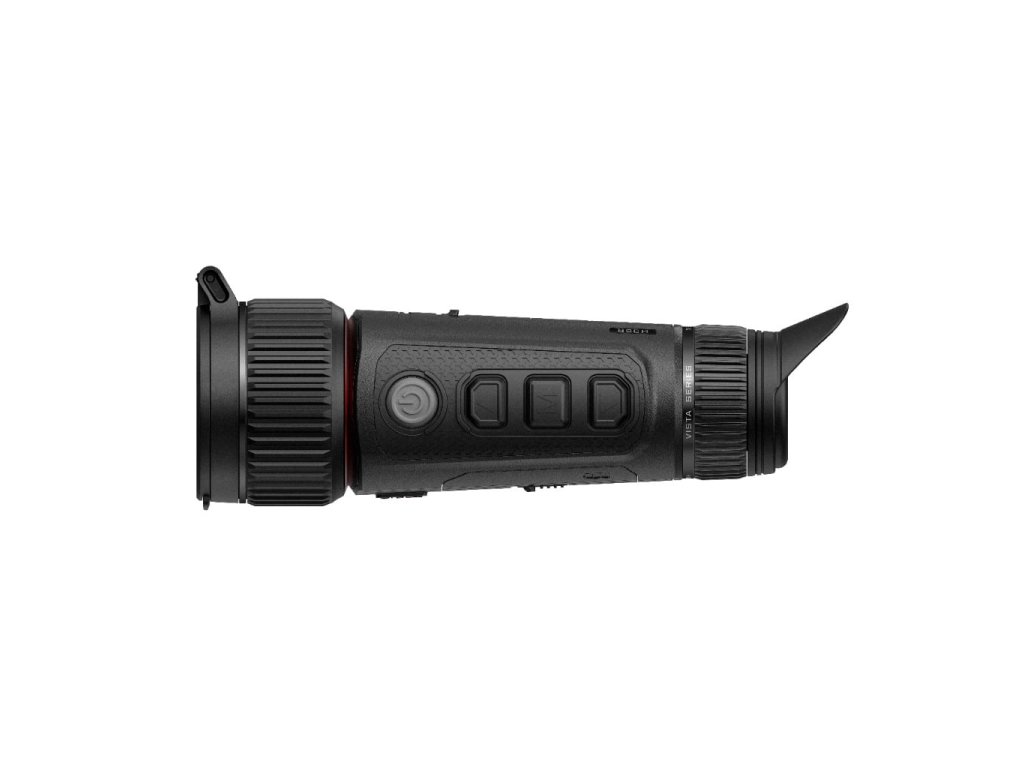

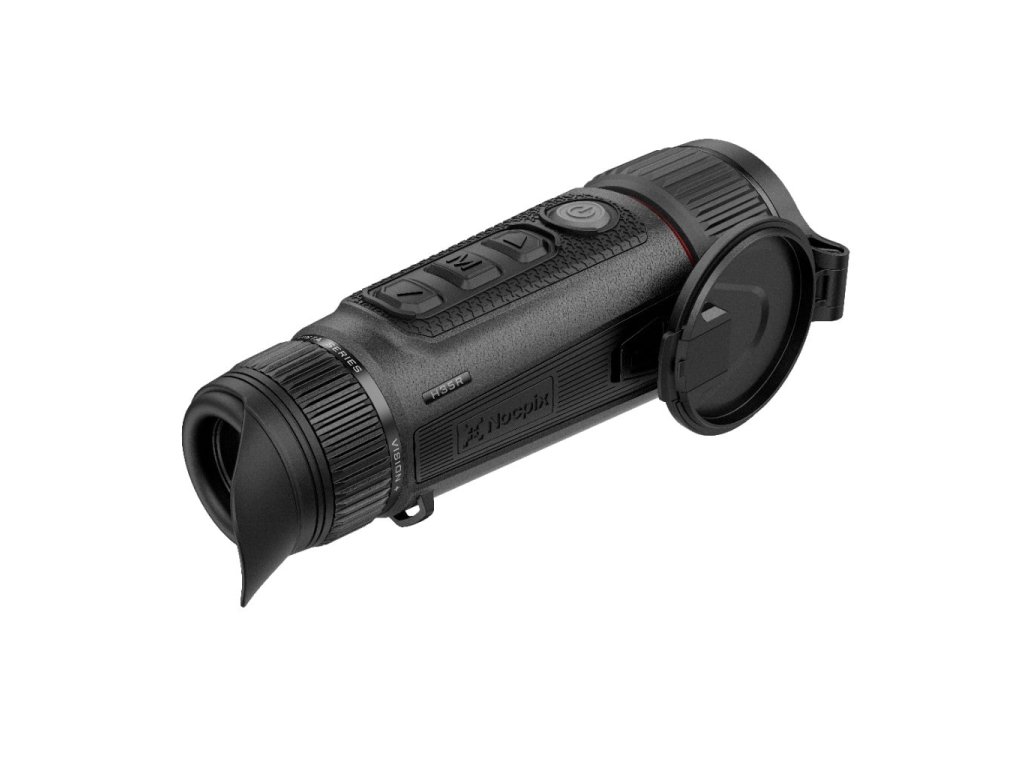

Nocpix VISTA H35R

Product detailed description

Nocpix Vista’s Vision+ System, with its 2560×2560 AMOLED display and 8mm exit pupil diameter, offers an immersive observational experience. Equipped with a superior sensor and integrated LRF, Vista delivers top-tier performance in the industry. Its user-friendly design and improved battery solution make it the ideal companion for overcoming outdoor challenges.

Nocpix Vista series thermal imaging monocular are designed for use both at night-time and during the day and provide exceptional image quality even in adverse weather conditions (fog, smog, rain) and beyond obstacles like branches, tall grass, dense foliage, etc. known to hinder target detection.

Nocpix VISTA thermal imagers are designed for various applications including hunting, observation, security, terrain orientation, search and rescue operations, etc

Features

• 640×512 12μm detector
• NETD ≤15mK
• 60Hz high frame rate
• F0.9 objective lens
• Lens and Laser rangefinder 2 in 1（VISTA H35R/VISTA H50R）
• AMOLED 2560×2560 round display
• Rechargeable Battery pack IBP-7 for quick replacement
• Smooth digital zoom: 1х~8х
• Ultra clear mode
• Eye protection with low brightness, color palette and warm hue
• Electronic image stabilization

Specification

Thermal Sensor 640×512 & 12μm
NETD ≤15 mK
Frame Rate 60 Hz
Objective Lens 35 mm F0.9
Field of view(H×V),°/m@100m 12.5×10.0 /22×18
Magnification 3~28x
Detective range (Target size:1.7m×0.5m,P(n)=99%) 1800 m
Exit relief 25 mm
Exit pupil diameter 8 mm
Diopter -4~+6 D
Display type 1.03 inch OLED
Resolution 2560x2560
Battery Type 4400mAh Battery pack
Max. operation time (t=22℃) 5.5 h
Safety Class for Laser Class 1
Max. Rangefinder distance 1200 m
MIC Yes
Memory capacity 64 GB
IP rating IP67
Operating temperature -20 ℃ ~ +50 ℃
Weight (with battery) 610 g
Dimension 184×61×71 mm
