ThermTec CYCLOPS CP635
Code: TX_1143
Product detailed description

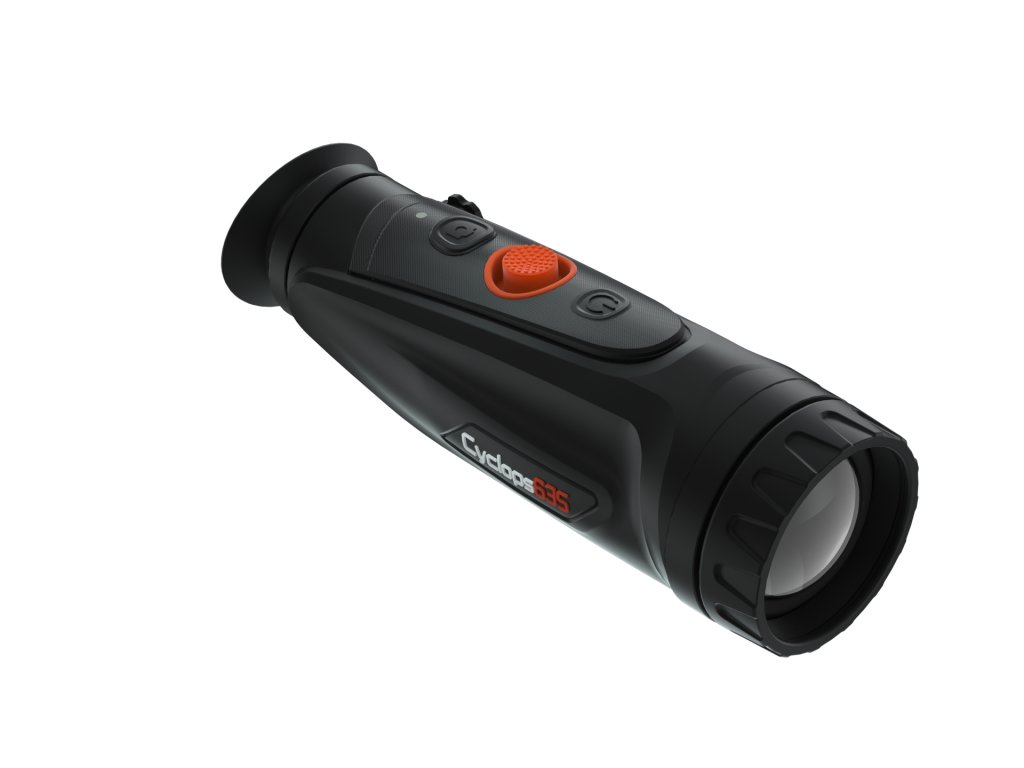

Thermal Monocular ThermTec Cyclops CP635
The new generation Cyclops thermal imaging monocular developed by ThermTec is equipped with a 12μm uncooled infrared detector and comes in two versions with 35mm/50mm lens focal lengths and a high resolution 1024x768 OLED display. With an intelligent AI image recognition algorithm, it allows users to recognize objects at a glance even in complete darkness, providing a reliable and high-quality visual experience especially at night. In particular, the mobile phone connectivity function ensures endless enjoyment of users' outdoor activities.
Automatic distance measurement using AI (artificial intelligence):
Using artificial intelligence, the device can automatically measure the distance of an object.
Smooth zoom:
The device can realize continuous zoom from 1.8x to 6.0x. Using the joystick, the image can be continuously zoomed in or out and the target can be flexibly searched and quickly located. The basic magnification of the CP635 is 2x.
Color Palette:
ThermTec is the first to come up with multiple options to plot temperature readings on your device. Choose from a wide range of 6 colour palettes to tailor your instrument to your requirements.
Wi-Fi bidirectional design:
Allows the user to not only control the device by connecting the monocular to a mobile device, but also maintains the existing 4G/5G internet connection, allowing the user to share videos or pictures with friends in real time.
Specifications:
| Detector resolution | 640×512 px, 12 µm, VOx |
| NETD (heat sensitivity) | < 35 mk (at 25 °C, F#= 1.0) |
| Lens | 35 mm |
| Magnification | 2x - 12x |
| Digital magnification | 1-6x (Continuous Zoom) |
| Field of view | 12.5°x10° |
| Recovery Frequency | 50 Hz |
| Detekce | 1800m |
| Display | 0.4 inch, OLED, 1024x768px |
| Pallets | Teplo as Black, Red, White, Fusion and more |
| Detection of the hottest point | ANO |
| Wi-Fi and hotspot capability | ANO |
| Built-in storage | 16 GB |
| Photo capability | ANO |
| Video option | ANO |
| AI Rangefinder | ANO, (using artificial intelligence) |
| Battery type | Lithium battery |
| Efficient Mode | ANO |
| Battery operating time | Up to 12 hours of continuous operation (without Wi-Fi function) |
| Power | USB-C |
| Operating Temperature | -20° C to 55° C (-24° F to 131° F) |
| Level of protection | IP67 |
| Resistance to falling | up to 1.5 m |
| Dimensions (L x W x H) | 190×63×67 mm |
| Weight |
550 g
|
| Warranty | 3 years |
Contents of the Package:
- ThermTec Cyclops CP635
- Instructions in Czech
- USB cable
- Hand loop
- Protective bag for thermal imaging cameras
Additional parameters
| Category: | BRAND |
|---|---|
| Weight: | 0.55 kg |
| Temperature sensitivity: | 30 mK |
| Detection (m): | 1800 |
| Optické zväčšenie: | 2x |
| Rozlíšenie displeja: | 1024 × 768 px |
| Sensor: | 640 x 512 px |
| Lens: | 35 mm |
| Výdrž batérie (hodiny): | 12 |
| Wi-Fi: | Áno |
